Agricultural Machinery 1S Series Omnidirectional Subsoiler Improve Soil Permeability

Short Description:

Product Detail

Product Tags

Function description

Conservation tillage is a revolution of farming methods, and it is an important way and effective measure to restrain dust emission, reduce soil erosion and save agricultural cost. The Ministry of Agriculture is promoting this farming technique, in which conservation tillage equipment is expected to play a key role. This machine is used for subsoiling operation on unplowed or cultivated land. Its operation features are that the subsoiling part forms a certain interval rat path at a depth of 25 ~ 35 cm in the soil layer, breaks the bottom layer of the soil plough, and effectively improves the soil permeability, it can improve soil water storage capacity, help crops to take root deeply, enhance the ability of crops to resist lodging, play a role in moisture conservation, high yield and reduce water and soil loss. This machine has high working efficiency and is popular among farmers.

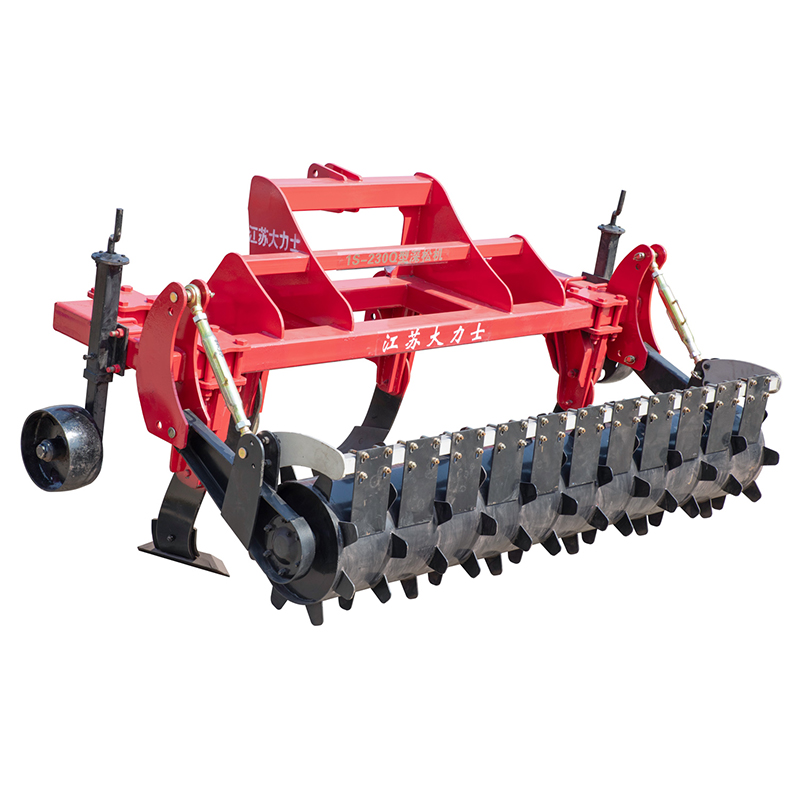

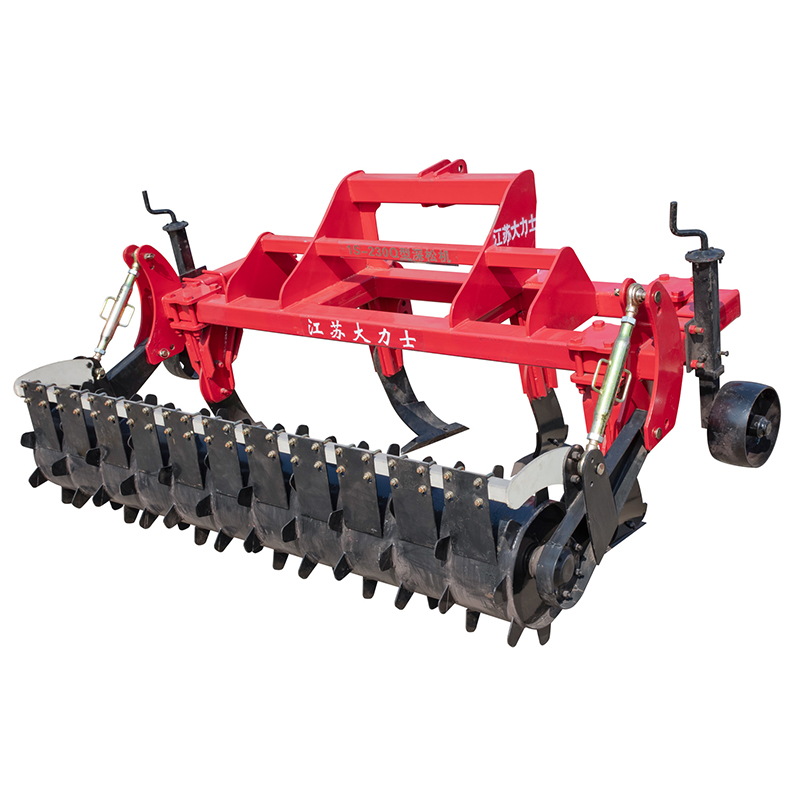

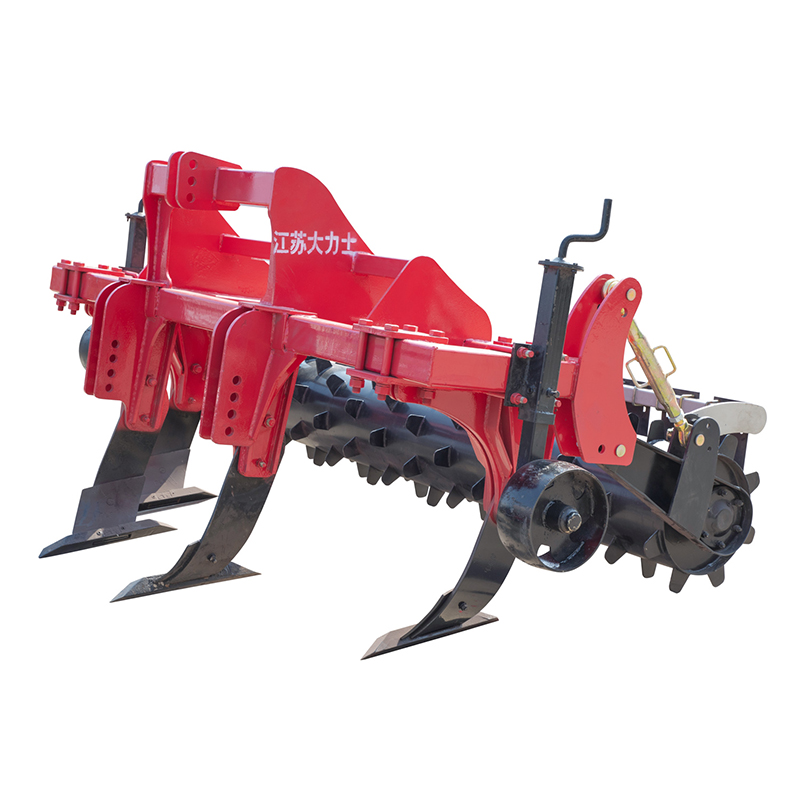

Product Display

Product Advantage

1.The overall frame design is reasonable, using thickened material, full weld.

2.The subsoiling shovel adopts imported material, heat treatment technology, high wear resistance.

3.Shovel tip into the soil using progressive, the same horsepower tractor traction easier, faster, and more efficient operation.

4.Using the enlarged and thickened type soil crushing roll, the effect of soil crushing is good and the ground is flat.

5.The overall design can be adjusted into a 5-shovel, 7-shovel replacement shovel, unique advantages.

6.The suppression system can be equipped with hydraulic type, more options to easily adjust the suppression effect.

Parameter

Models	1S-230Q/1S-310Q	Rate of soil fragmentation(%)	60
Tillage extent(m)	2.3/3.1	Depth of tillage(cm)	20-40
Matching power(kW)	73.5-95.5/88.2-110	Transfer form	Standard three-point suspension
Number of subsoiling shovels(number)	4/6	Subsoiling component form	Unit work

Packaging & Shipping

Packaging Detail: Iron pallet or wooden cases
Delivery Detail: By sea or By air

1. Waterproof packing with the international export standard by 20ft, 40ftcontainer.Wooden Case or Iron Pallet.

2. The whole set of machines size are large as normal, so we will use Waterproof materials to packall of them. The motor, gear box or other easily damaged parts, we will put them into box.
